Shandong Tengfei Hoisting Engineering Co., Ltd.
1 Years

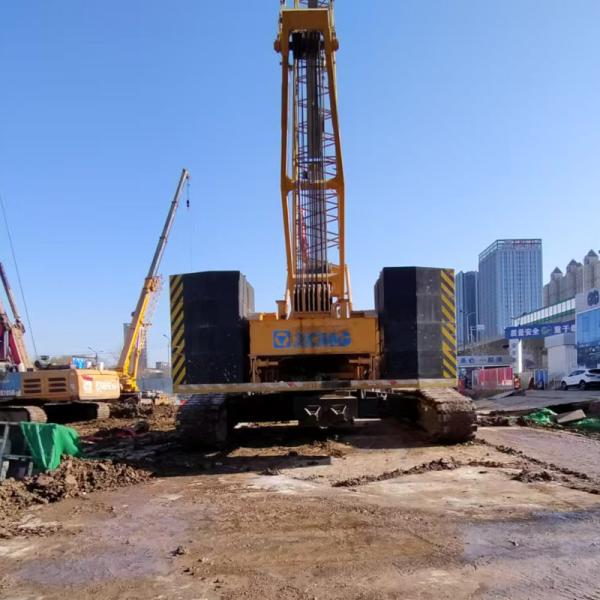

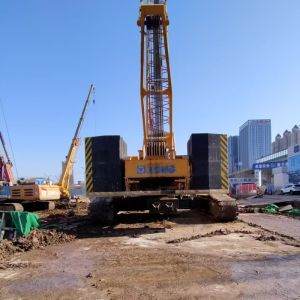

| Ask Lasest Price | |
| Brand Name : | XCMG |
| Model Number : | XGC130 |
| Price : | Negotiable Price |
| Payment Terms : | L/C,T/T |
| Supply Ability : | Supply According to Customer Needs |
| Delivery Time : | According to Order Confirmation |
Fixed jib working range diagram
Working range of fixed jib
Fixed jib load table
Load table for fixed jib condition when jib angle is 15°(load unit:t)
Jib angle | 15° | |||||||||||||||
Boom(m) | 37 | 40 | 43 | 46 | ||||||||||||
Jib(m) | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 |
Radians(m) | ||||||||||||||||
13 | 20.0 | |||||||||||||||
14 | 20.0 | 18.0 | 18.0 | |||||||||||||
16 | 18.5 | 15.7 | 18.0 | 15.0 | 18.0 | 17.0 | ||||||||||
18 | 17.0 | 15.2 | 11.3 | 17.0 | 15.0 | 17.0 | 15.2 | 16.5 | 15.3 | |||||||
20 | 16.7 | 14.7 | 11.0 | 16.5 | 14.5 | 10.9 | 16.5 | 14.8 | 11.0 | 16.5 | 14.9 | 11.2 | ||||
22 | 16.7 | 14.0 | 10.5 | 7.0 | 16.5 | 13.9 | 10.4 | 7.0 | 16.5 | 14.3 | 10.7 | 7.1 | 16.5 | 14.5 | 10.9 | |
24 | 15.9 | 13.4 | 9.8 | 6.8 | 15.8 | 13.2 | 9.7 | 6.8 | 15.6 | 13.2 | 9.7 | 6.8 | 15.4 | 13.9 | 10.5 | 7.0 |
26 | 14.2 | 12.1 | 9.2 | 6.5 | 14.1 | 11.9 | 9.1 | 6.5 | 13.9 | 12.6 | 9.1 | 6.6 | 13.7 | 13.2 | 9.8 | 6.6 |
28 | 12.8 | 11.5 | 8.6 | 6.2 | 12.7 | 11.4 | 8.5 | 6.2 | 12.5 | 11.9 | 8.8 | 6.3 | 12.5 | 11.9 | 9.2 | 6.3 |
30 | 11.7 | 10.8 | 8.3 | 5.8 | 11.8 | 10.7 | 8.3 | 5.8 | 12.0 | 11.1 | 9.1 | 6.0 | 11.3 | 11.1 | 8.6 | 6.2 |
32 | 11.5 | 10.2 | 8.3 | 5.7 | 11.8 | 10.1 | 8.2 | 5.7 | 11.3 | 10.4 | 9.0 | 5.7 | 10.2 | 10.4 | 8.3 | 5.8 |
34 | 10.4 | 9.5 | 8.0 | 5.4 | 10.7 | 9.4 | 8.0 | 5.4 | 10.2 | 9.5 | 8.7 | 5.5 | 9.9 | 9.4 | 8.3 | 5.7 |
36 | 9.7 | 8.9 | 7.4 | 5.2 | 9.6 | 8.8 | 7.3 | 5.2 | 9.6 | 8.7 | 8.3 | 5.3 | 9.4 | 8.6 | 8.0 | 5.4 |
38 | 8.8 | 8.3 | 7.3 | 5.1 | 8.8 | 8.3 | 7.3 | 5.1 | 8.6 | 8.1 | 8.0 | 5.2 | 8.6 | 7.9 | 7.4 | 5.2 |
40 | 8.3 | 7.7 | 7.3 | 4.9 | 8.1 | 7.6 | 7.3 | 4.9 | 8.1 | 8.1 | 7.3 | 5.0 | 7.9 | 7.3 | 7.1 | 5.1 |
42 | 7.5 | 7.2 | 6.6 | 4.8 | 7.5 | 6.9 | 6.6 | 4.8 | 7.3 | 7.6 | 7.2 | 4.8 | 7.2 | 7.2 | 6.7 | 4.9 |
44 | 7.0 | 6.7 | 6.6 | 4.6 | 7.0 | 6.4 | 6.6 | 4.6 | 6.8 | 7.0 | 6.6 | 4.7 | 6.6 | 6.8 | 6.3 | 4.8 |
46 | 6.2 | 6.3 | 4.4 | 5.9 | 6.3 | 4.4 | 6.2 | 6.5 | 6.4 | 4.6 | 6.2 | 6.3 | 6.2 | 4.6 | ||
48 | 5.6 | 5.9 | 4.3 | 5.6 | 5.9 | 4.3 | 5.9 | 5.9 | 5.9 | 4.4 | 5.8 | 5.9 | 5.7 | 4.5 | ||
50 | 5.3 | 5.5 | 4.1 | 5.3 | 5.5 | 4.1 | 5.6 | 5.5 | 4.3 | 5.4 | 5.5 | 5.5 | 4.4 | |||
52 | 5.5 | 4.1 | 5.3 | 4.1 | 5.3 | 5.3 | 4.1 | 5.1 | 5.1 | 4.3 | ||||||
54 | 5.1 | 3.9 | 4.9 | 3.9 | 4.9 | 4.9 | 4.1 | 4.7 | 4.8 | 4.1 | ||||||
56 | 4.8 | 3.9 | 4.6 | 3.9 | 4.6 | 3.9 | 4.4 | 4.4 | 4.1 | |||||||
58 | 3.8 | 3.8 | 4.2 | 3.9 | 4.0 | 3.9 | ||||||||||
60 | 3.5 | 3.5 | 3.8 | 3.7 | 3.7 | |||||||||||
62 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |||||||||||
64 | 3.4 | 3.2 | ||||||||||||||
66 | 3.0 | |||||||||||||||
68 | 2.9 | |||||||||||||||
Counter weight | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
Jib angle | 15° | |||||||||||||||
Boom(m) | 49 | 52 | 55 | 58 | ||||||||||||
Jib(m) | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 |
Radians(m) | ||||||||||||||||
16 | 16.5 | 16.5 | ||||||||||||||
18 | 16.5 | 15.4 | 16.5 | 16.0 | 15.8 | |||||||||||
20 | 16.5 | 15.0 | 16.5 | 15.0 | 16.0 | 15.0 | 15.8 | 15.0 | ||||||||
22 | 16.5 | 14.6 | 10.9 | 16.4 | 14.6 | 10.8 | 16.0 | 14.8 | 11.0 | 15.8 | 14.9 | 11.0 | ||||
24 | 15.4 | 13.9 | 10.4 | 7.0 | 15.1 | 14.2 | 10.6 | 7.0 | 15.1 | 14.4 | 10.7 | 7.1 | 14.8 | 14.5 | 10.7 | |
26 | 13.7 | 13.2 | 9.7 | 6.8 | 13.4 | 13.5 | 10.0 | 6.8 | 13.4 | 13.5 | 10.3 | 7.0 | 13.3 | 13.2 | 10.3 | 6.3 |
28 | 12.3 | 12.3 | 9.1 | 6.5 | 12.2 | 12.2 | 9.7 | 6.6 | 12.0 | 12.1 | 9.7 | 6.6 | 12.0 | 11.9 | 9.7 | 6.1 |
30 | 12.1 | 11.2 | 8.5 | 6.2 | 11.0 | 11.1 | 9.0 | 6.3 | 11.8 | 10.9 | 9.0 | 6.4 | 11.7 | 10.8 | 9.4 | 5.9 |
32 | 11.0 | 10.2 | 8.3 | 6.0 | 11.0 | 9.9 | 8.4 | 6.1 | 10.8 | 9.9 | 8.4 | 6.2 | 10.6 | 9.8 | 9.0 | 5.7 |
34 | 10.0 | 9.2 | 8.3 | 5.7 | 9.9 | 9.1 | 8.2 | 5.8 | 9.5 | 8.9 | 8.4 | 6.0 | 9.7 | 8.9 | 8.4 | 5.4 |
36 | 9.2 | 8.6 | 8.0 | 5.5 | 9.2 | 8.4 | 8.2 | 5.7 | 9.0 | 8.4 | 8.2 | 5.7 | 8.8 | 8.2 | 8.1 | 5.3 |
38 | 8.5 | 8.5 | 7.7 | 5.3 | 8.3 | 7.7 | 7.6 | 5.5 | 8.3 | 7.5 | 7.4 | 5.5 | 8.1 | 7.4 | 7.4 | 5.1 |
40 | 7.7 | 7.9 | 7.2 | 5.2 | 7.7 | 7.0 | 7.0 | 5.3 | 7.5 | 7.0 | 6.8 | 5.3 | 7.3 | 6.9 | 6.8 | 5.0 |
42 | 7.2 | 7.2 | 6.5 | 5.1 | 7.0 | 6.5 | 6.5 | 5.2 | 7.0 | 6.4 | 6.3 | 5.2 | 6.8 | 6.2 | 6.2 | 4.8 |
44 | 6.6 | 6.6 | 6.2 | 4.9 | 6.4 | 6.0 | 6.0 | 5.0 | 6.4 | 5.9 | 5.8 | 5.1 | 6.2 | 6.1 | 5.7 | 4.7 |
46 | 6.0 | 6.1 | 6.1 | 4.8 | 5.9 | 6.1 | 5.5 | 4.9 | 5.9 | 5.4 | 5.4 | 4.9 | 5.8 | 5.7 | 5.2 | 4.6 |
48 | 5.6 | 5.7 | 5.7 | 4.6 | 5.6 | 5.6 | 5.0 | 4.8 | 5.4 | 5.1 | 5.0 | 4.8 | 5.2 | 5.2 | 5.0 | 4.5 |
50 | 5.2 | 5.3 | 5.3 | 4.4 | 5.2 | 5.2 | 5.0 | 4.6 | 5.0 | 5.1 | 4.6 | 4.6 | 4.8 | 4.8 | 4.8 | 4.3 |
52 | 4.8 | 4.9 | 4.9 | 4.4 | 4.7 | 4.6 | 4.6 | 4.4 | 4.7 | 4.7 | 4.6 | 4.6 | 4.5 | 4.5 | 4.5 | 4.1 |
54 | 4.6 | 4.6 | 4.3 | 4.3 | 4.2 | 4.2 | 4.2 | 4.3 | 4.4 | 4.4 | 4.4 | 4.1 | 4.1 | 4.1 | 3.8 | |
56 | 4.2 | 4.2 | 4.1 | 4.1 | 4.0 | 4.0 | 4.0 | 3.9 | 4.0 | 4.0 | 4.0 | 3.7 | 3.7 | 3.5 | 3.5 | |
58 | 4.0 | 3.9 | 3.9 | 3.8 | 3.6 | 3.6 | 3.5 | 3.8 | 3.7 | 3.7 | 3.3 | 3.3 | 3.3 | 3.2 | ||
60 | 3.7 | 3.7 | 3.6 | 3.5 | 3.5 | 3.5 | 3.5 | 3.4 | 3.2 | 3.2 | 3.2 | 3.2 | ||||
62 | 3.3 | 3.4 | 3.3 | 3.3 | 3.1 | 3.1 | 3.1 | 3.1 | 3.0 | 2.9 | ||||||
64 | 3.2 | 3.2 | 3.0 | 3.0 | 2.9 | 2.9 | 2.9 | 2.6 | 2.6 | 2.6 | ||||||
66 | 2.9 | 2.8 | 2.6 | 2.6 | 2.6 | 2.5 | 2.5 | 2.5 | ||||||||
68 | 2.7 | 2.5 | 2.5 | 2.5 | 2.3 | 2.2 | ||||||||||
70 | 2.5 | 2.4 | 2.3 | 2.3 | 2.1 | 2.1 | ||||||||||
72 | 2.2 | 2.0 | 1.9 | 1.9 | ||||||||||||
74 | 1.8 | 1.7 | ||||||||||||||
Counter weight | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
Jib angle | 15° | |||||||
Boom(m) | 61 | 64 | ||||||
Jib(m) | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 |
Radians(m) | ||||||||
18 | 15.5 | 15.6 | ||||||
20 | 15.5 | 15.4 | 15.4 | |||||
22 | 15.0 | 15.0 | 15.1 | 13.6 | ||||
24 | 14.6 | 14.5 | 10.8 | 14.5 | 13.4 | 10.9 | ||
26 | 13.1 | 13.0 | 10.6 | 7.0 | 12.9 | 12.8 | 10.7 | 6.3 |
28 | 11.8 | 11.7 | 10.3 | 6.8 | 11.7 | 11.6 | 10.3 | 6.3 |
30 | 11.7 | 10.6 | 9.7 | 6.6 | 10.5 | 10.4 | 9.7 | 6.0 |
32 | 10.4 | 9.6 | 9.0 | 6.3 | 9.5 | 9.4 | 9.0 | 5.9 |
34 | 9.6 | 8.8 | 8.4 | 6.2 | 8.7 | 8.6 | 8.5 | 5.7 |
36 | 8.6 | 8.0 | 7.9 | 6.0 | 7.9 | 8.0 | 7.8 | 5.4 |
38 | 7.9 | 7.8 | 7.3 | 5.7 | 7.2 | 7.2 | 7.1 | 5.3 |
40 | 7.2 | 7.2 | 6.6 | 5.6 | 6.5 | 6.5 | 6.5 | 5.1 |
42 | 6.6 | 6.5 | 6.0 | 5.3 | 5.8 | 6.3 | 6.0 | 5.0 |
44 | 6.0 | 6.1 | 5.5 | 5.2 | 5.3 | 6.1 | 5.5 | 4.8 |
46 | 5.6 | 5.7 | 5.0 | 5.2 | 5.1 | 5.6 | 4.9 | 4.7 |
48 | 5.0 | 5.3 | 5.3 | 5.0 | 4.6 | 5.3 | 4.6 | 4.4 |
50 | 4.6 | 4.5 | 4.7 | 4.7 | 4.2 | 4.5 | 4.3 | 4.1 |
52 | 5.2 | 4.4 | 4.4 | 4.2 | 3.9 | 4.1 | 3.8 | 4.0 |
54 | 3.9 | 4.0 | 4.0 | 3.9 | 3.4 | 3.8 | 3.3 | 3.9 |
56 | 3.5 | 3.8 | 3.7 | 3.5 | 3.3 | 3.4 | 3.3 | 3.4 |
58 | 3.2 | 3.5 | 3.3 | 3.2 | 3.0 | 3.1 | 3.0 | 3.0 |
60 | 3.0 | 3.1 | 3.0 | 2.9 | 2.8 | 2.9 | 2.8 | 2.7 |
62 | 2.6 | 2.7 | 2.6 | 2.7 | 2.4 | 2.6 | 2.6 | 2.5 |
64 | 2.5 | 2.5 | 2.5 | 2.3 | 2.4 | 2.3 | 2.4 | |
66 | 2.4 | 2.3 | 2.2 | 2.0 | 2.2 | 2.1 | 2.2 | |
68 | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 | 1.9 | ||
70 | 1.9 | 1.9 | 1.9 | 1.8 | 1.7 | |||
72 | 1.8 | 1.7 | 1.7 | 1.7 | 1.6 | |||
74 | 1.7 | 1.6 | 1.5 | 1.5 | ||||
Counter weight | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
|
|
